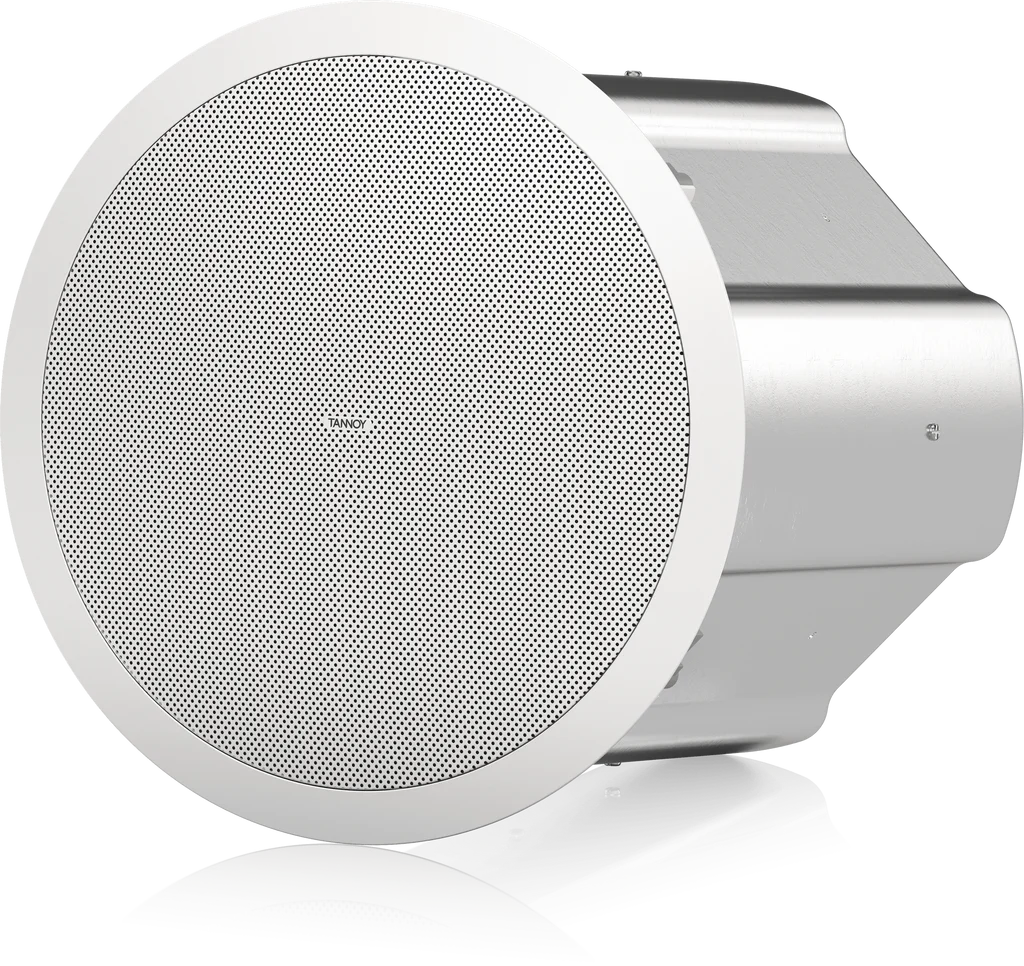

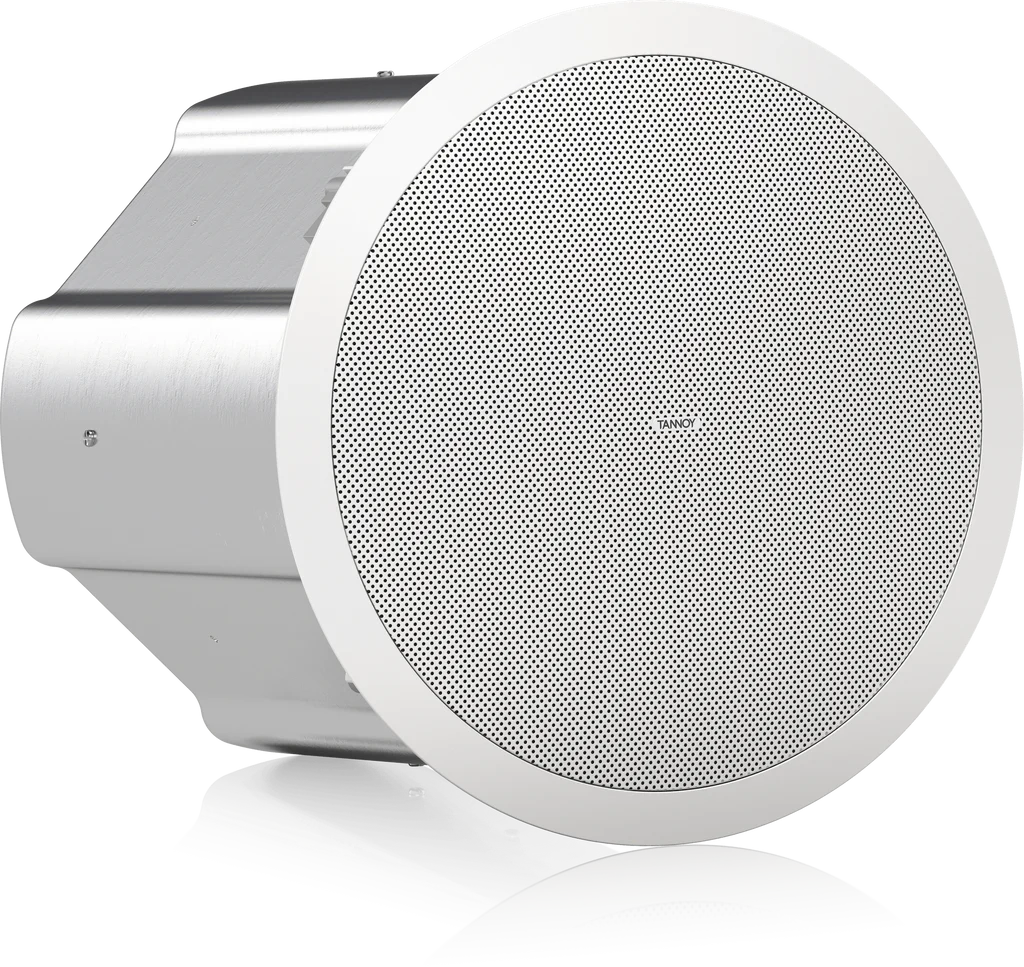

CVS 801S LZ 8" IN-CEILING SUBWOOFER LOUDSPEAKER

TANNOY CVS 801S LZ 8" In-Ceiling Subwoofer Loudspeaker for Installation Applications - Low Impedance Operation Only (CVS 801S LZ) The CVS 801S LZ is a low impedance (8 Ohms) ceiling subwoofer designed to deliver exceptional audio performance in both background and foreground music systems. Tailored for diverse applications such as restaurants, hotels, houses of worship, and various businesses, the CVS 801S LZ boasts robust power handling, extended bass output, and minimal distortion akin to higher-priced alternatives. Its UL 1480 certification for fire-protected signaling systems and UL 2043 certification for air-handling spaces underlines its commitment to safety, making it an ideal choice for environments where safety remains a paramount concern.

Exceptional Sound and Reliability The CVS 801S LZ incorporates a 200 mm (8.00”) polypropylene long-excursion driver housed within a UV and weather-resistant UL 94-V0 ABS front, enclosed in a plated steel fire can. It boasts dust protection via an appealing powder-coated aluminum mesh grille. With mineral-loaded polypropylene cone material and a butyl rubber surround, it ensures heightened durability and long-lasting reliability. The acoustic low-pass baffle design of the CVS 801S LZ eliminates the necessity for a crossover when used alongside other loudspeakers, making it an ideal choice for applications that demand superior music and speech sound quality along with unparalleled reliability.

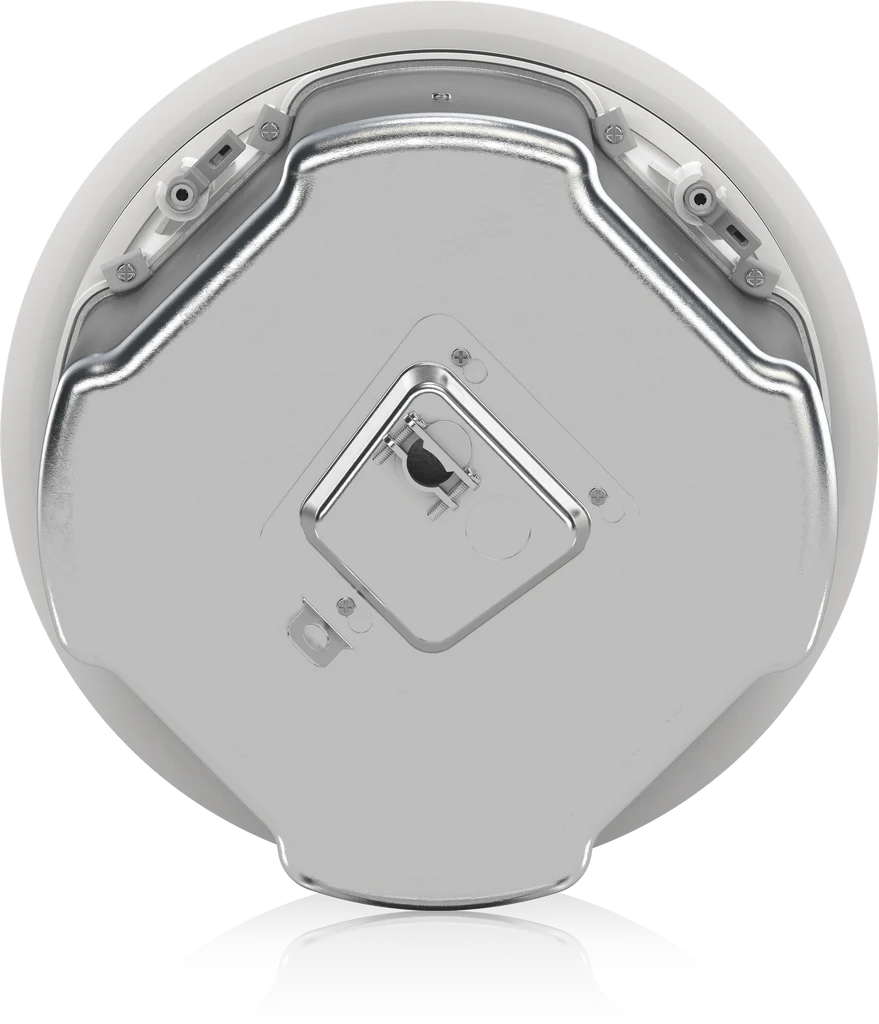

Comprehensive Installation Package The CVS 801S LZ comes equipped with an integral zinc-plated steel back can, featuring a recessed termination box that caters to a wide range of installation needs. Its semi-matte white finish blends seamlessly into various environments without drawing unnecessary attention. The removable locking connector, equipped with screw terminals and a "loop through" feature, ensures secure wire termination. For fire-rated cabling, a steel cover and strain relief clamping mechanism are provided, along with security toggle clamps that simplify and hasten the installation process. Additionally, the package includes two tile support rails and one C-ring. Users can opt for a plaster (mud) ring as an optional accessory. Enhancing its functionality is a custom-designed low insertion loss 80 W line transformer with an easily accessible tapping switch, ensuring exceptional performance and optimal adaptability.

Product Features

• Ceiling subwoofer loudspeaker for installation applications - low impedance operation only
• 100 Watts continuous, 400 Watts peak power
• 8" polypropylene long-excursion driver with butyl rubber surround for enhanced durability and long-term reliability
• Extended deep bass output
• UL 1480 certified for fire-protected signalling systems
• UL 2043 certified for air-handling spaces
• UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure

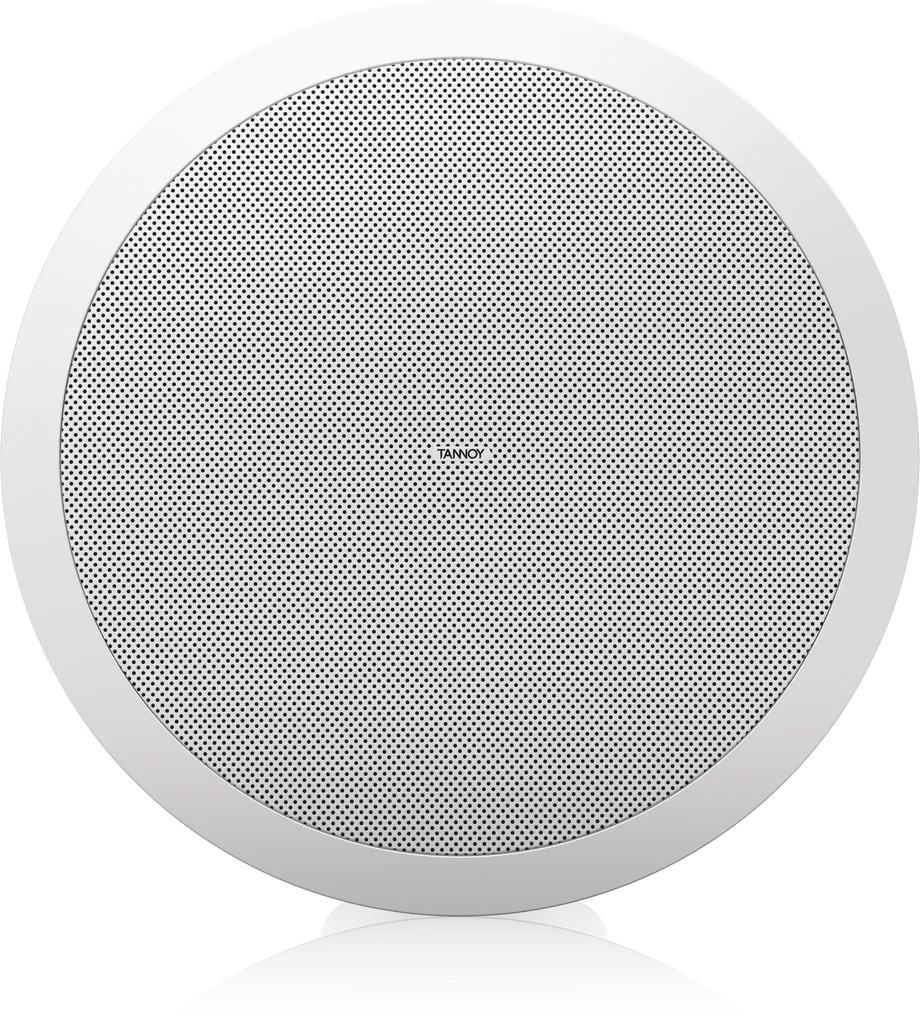

• Powder-coated aluminum mesh grille with dust protection
• 8 Ohm input for low-impedance operation
• Acoustic low-pass baffle design allows use without crossover
• Semi-matte white finish fits unobtrusively in any environment
• Mounting C-ring and ceiling tile rails included
• Steel cover and strain relief clamping mechanism for fire-rated cable
